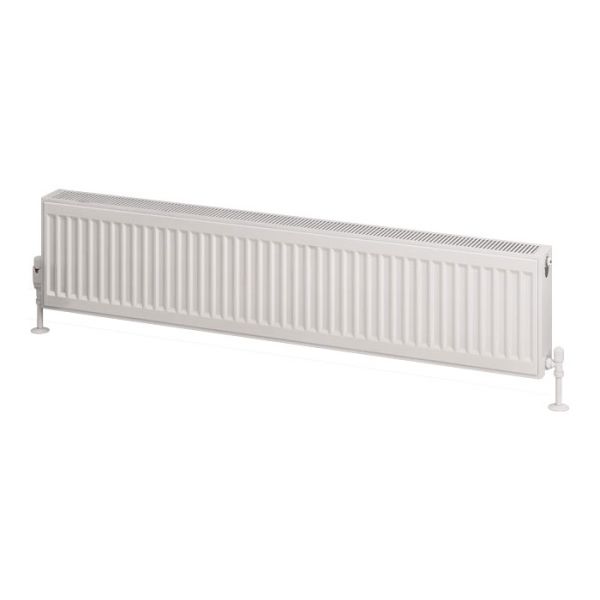

Eastbrook Compact Panel White Type 22 Central Heating Radiator 300 x 1400mm

300 x 1400mm Gloss White Double Panel Double Convector Central Heating Radiator by Eastbrook

Central heating radiators are also known as convector radiators or panel radiators. They can be found in most homes within the UK as they are very affordable, available in a large range of heights and widths and have a simple design that looks great, not to mention provide great heat outputs too!

The Eastbrook comapct central heating radiator range includes almost 200 options to pick from, it consists of white, anthracite and black colour options as well as type 11, type 21 and type 22 models.

Eastbrook Type 22 Radiator - Features

• Material: Steel
  Steel radiators provide great heat outputs, are very reliable as well as affordable
• Finish: Gloss White
  White, a classic neutral finish that complements all colours
• Style: Type 22 Radiator
  Type 22 radiators have a panel on the front and back of the radiator and two sets of convector fins
• Inlets: Both
  Eastbrook compact radiators have bottom and vertical inlets

Eastbrook Type 22 Radiator - Details

• Height: 300mm
• Width: 1400mm
• Depth From Wall To Front of Radiator: 135mm
• Horizontal Pipe Centres: 1400mm
• Tapping From Wall: 72/84mm
• Heat Output (Delta T50): 4389 BTU
• Heat Output (Delta T50): 1287 Watts
• Weight: 20Kg
• Radiators have 4 x 1/2" connections
• Max operating pressure: 4 bars
• Product Code: 25.0140

Additional Information

• Only suitable for use with hot water central heating systems
• Each compact panel radiator is supplied with complete concealed wall brackets including air vent (bleed valve) and blanking plug
• Supplied with a 10 year manufacturer's guarantee
• Complete with fitted top grill & side panels
• Manufactured in automatic production lines and tested to BS EN 442 standards

Downloads

• Eastbrook Compact Type 22 Central Heating Radiator Specification Sheet

• Eastbrook Compact Central Heating Radiator Installation Sheet

Optional Extras

Click here to view Eastbrook radiator accessories.

Heat Output Calculator

Want to find out if this radiator will heat your room? Click here for our Radiator Heat Output Calculator.
